MgF2
MgF2 is positive uni-axial crystal with a very high optical transmittance from the vacuum UV to IR. It also has a large resistance to mechanical and thermal shock, to optical radiation, and is chemically stable, making it a very useful materials for UV and IR optics.
Property:
l >50% Transmission at 120 nm

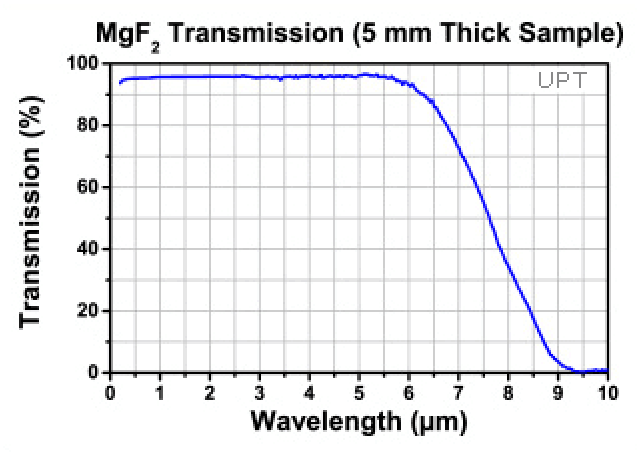

l Transmission ≥94% for λ = 200 nm - 6 µm
l Suitable for Excimer Lasers and Other Deep UV Applications
Advantages:
l High optical transmittance from the vacuum ultraviolet to the infrared spectrum region(0.12～8.5μm).
l Resistant to mechanical and thermal shock, to radiation
l Chemically stable
l A positive birefringent crystal, used for optical fiber communication
l Used for Optical prisms, lenses, wedges, windows, other optical components and etc
UPT’S Standard Products:
|
Dia φ or Width W(mm)
|
Thickness(mm)
|
Cut axis
|
|
A-cut with the maximum birefringence
|
||
|
φ25.4
|
1.0，2.0,3.0,4.0,5.0
|
[100]
|
|
C-cut with no birefringence
|
||
|
φ25.4
|
1.0，2.0,3.0,4.0,5.0
|
[001]
|
|
End-Faces Configuration
|
Flat
|
|
Optical product type
|
Window, Prism, Wedge
|
|
Dimension Tolerance (mm)
|
+/-0.1 (General), +0.0/-0.05 (High Precision)
|
|
Clear Aperture
|
>80%
|
|
Parallelism
|
3 min. (General), 20 sec. (High Precision)
|
|
Perpendicularity
|
15 min. (General), 5 min. (High Precision)
|
|
Flatness (per 25mm@633nm)
|
λ(General), λ/6 (High Precision)
|
|
Surface Quality
|
60/40 (General), 20/10 (High Precision)
|
|
Bevel (face width x 450)
|
<0.3mm
|
Note: In addition to these standard parts, UPT can also produce a wide variety of custom products round or square shapes upon request.
