CaF2(Calcium Fluoride)
CaF2 is a cubic crystal with an excellent transmission from 130 nm to 10 μm and has widespread applications as transparent windows in the ultraviolet and infrared spectra. Recently, CaF2 windows found a wide use for broadband continuum generation (white light generation) pumped by femtosecond lasers. UPT supplies [001] cut (i.e. the surface is perpendicular to the [001] axis) high quality CaF2 windows for continuum generation. CaF2 windows cut along a random orientation and polycrystalline CaF2 are also available.
Basic Properties
|

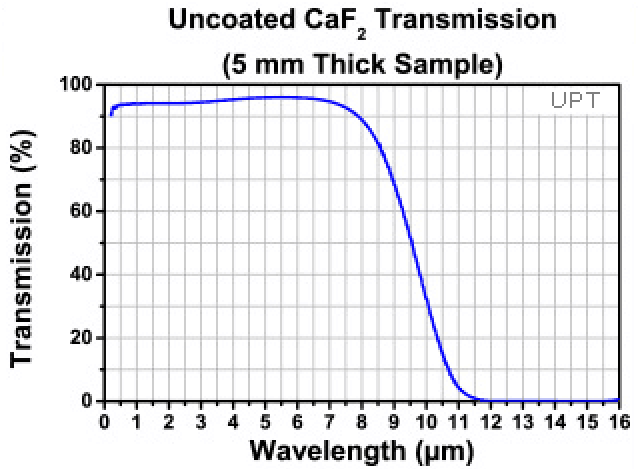

Transparency Range
|
130 - 9000 nm
|
|
Crystal Symmetry
|
Cubic
|
|
Density
|
3.18 g/cm3
|
|
Thermo-Optic Coefficients:
|
dn/dT= -13.1 x 10-6 /oC
|
|
Optical Homogeneity
|
Δn < 10-6/cm
|
|
Mohs Hardness
|
4
|
|
Thermal Conductivity
|
10 W/m/K
|
|
Thermal Expansion Coefficients:
|
α= 18 x 10-6/K
|
|
Sellmeier Equations (λ in µm):
|
n2= 1+ 0.56759λ2/(λ2 - 0.00253 ) + 0.47109λ2/(λ2-0.01001) + 3.84847λ2/(λ2-1200.56000)
|
Specifications
|
Orientation:
|
[001] (-C), random (-R) or as specified
|
|
Dimension Tolerance:
|
±0.1mm
|
|
Clear Aperture:
|
> 85%
|
|
Parallelism:
|
< 10 arc sec (T>=2mm)
|
|
< 60 arc sec (T=<1mm)
|
|
|
Flatness:
|
λ/6 @ 632.8nm
|
|
Surface Quality:
|
20/10 Scratch and Dig
|
|
Transmission Wavefront Distortion:
|
< λ/6 @632.8nm
|
|
Bevel:
|
< 0.25mm X 45°
|
|
Coatings:
|
upon request
|
Note: UPT can also produce a wide variety of custom products (round/square lens or windows etc.) upon request.
